CYOA Maker

1. Introduction

1.1 What is CYOA Maker?

CYOA Maker is a web application that lets users create and play Choose Your Own Adventure stories — interactive, branching narratives where the reader makes choices that determine how the story unfolds. Think of it as a lightweight, browser-based tool for writing the kind of adventure books that were popular in the 1980s and 1990s, but published on the web and playable by anyone with a browser.

A story is made up of story points — individual scenes or moments in the narrative. Each story point can have one or more choices that link to other story points, creating a web of possible paths through the story. Authors control the flow, and players experience a different adventure depending on the decisions they make.

1.2 Purpose and Goals

This project was built as a Grade 12 Web Technologies assignment. The goal was to design and build a complete, functional, multi-user web application from scratch — covering everything from database design and server-side PHP logic to front-end styling and user experience.

Key goals included:

• Allow anyone to play stories without needing to create an account.
• Allow registered users to create, edit, and publish their own stories.
• Provide a visual theme system so each story has its own look and feel.
• Include account management with email-based password reset.
• Provide an admin panel for managing all users and stories.
• Make the app easy to deploy with minimal server requirements.

2. Features & How It Works

2.1 Browsing and Playing Stories

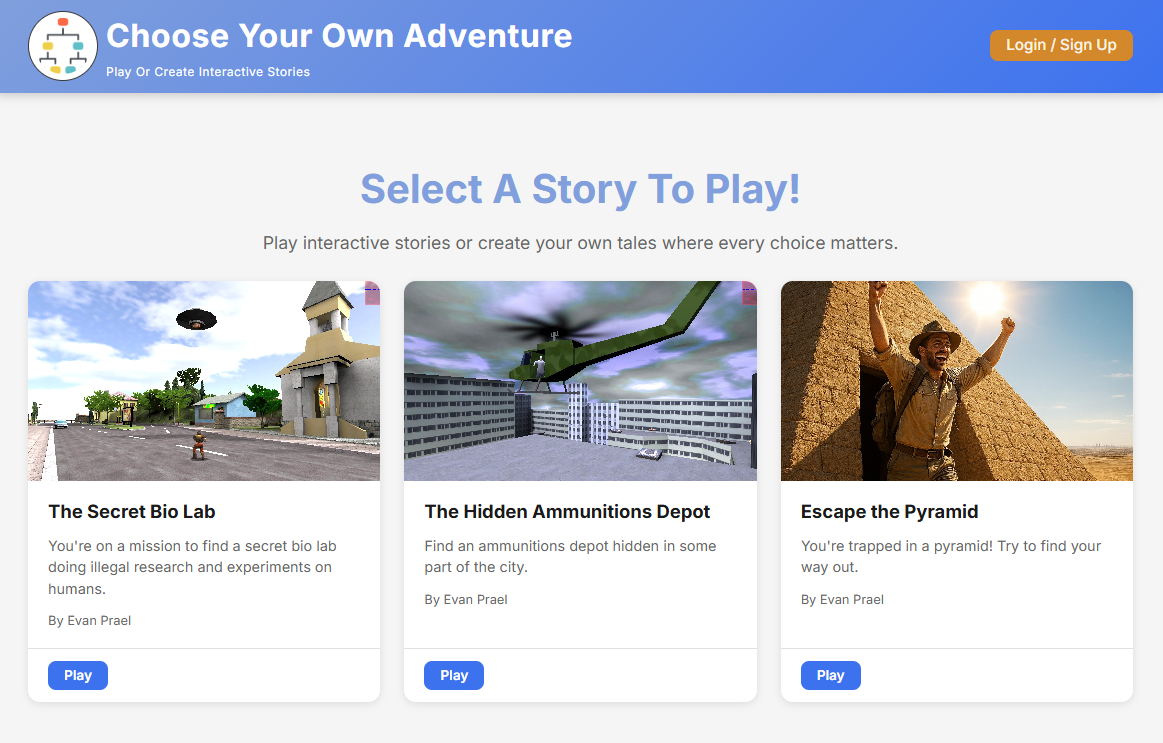

The homepage (index.php) displays a gallery of all published stories as cards. Each card shows the story's title, a short description, the author's name, creation date, and a thumbnail image. No login is required to browse or play — the app is open to anyone.

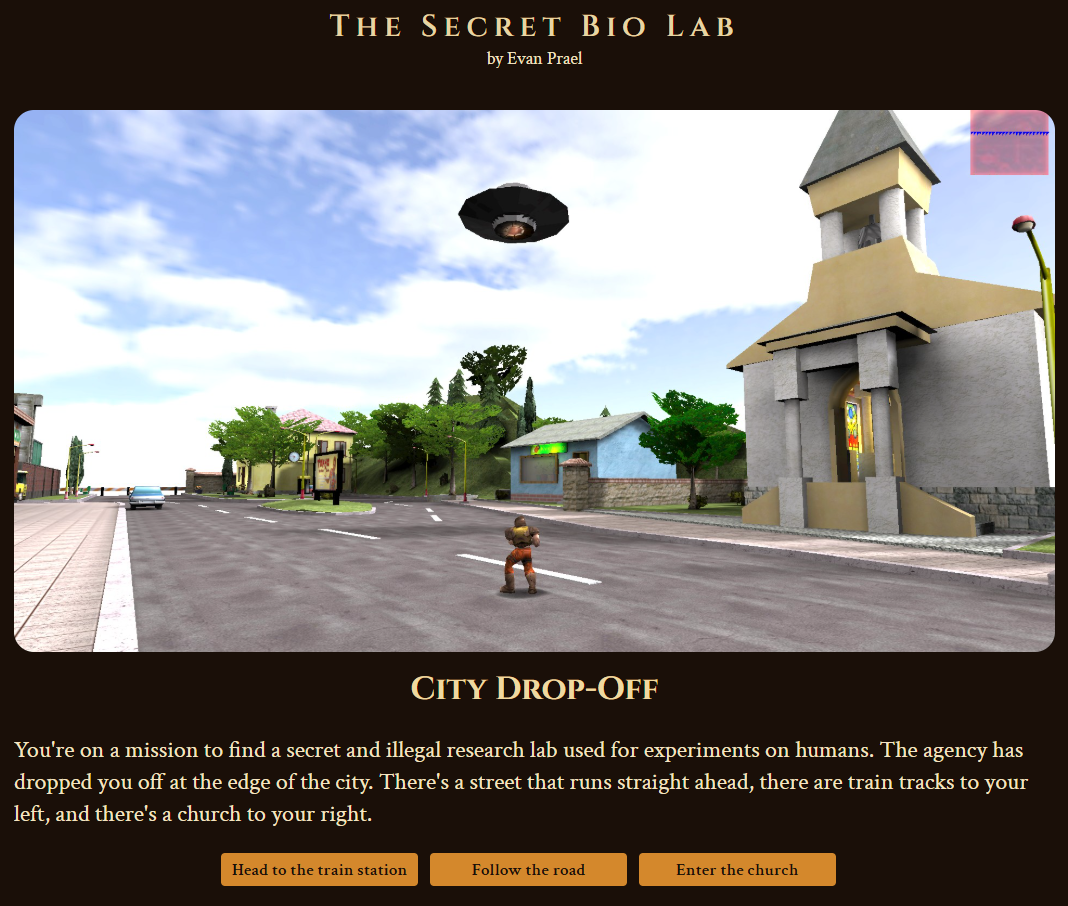

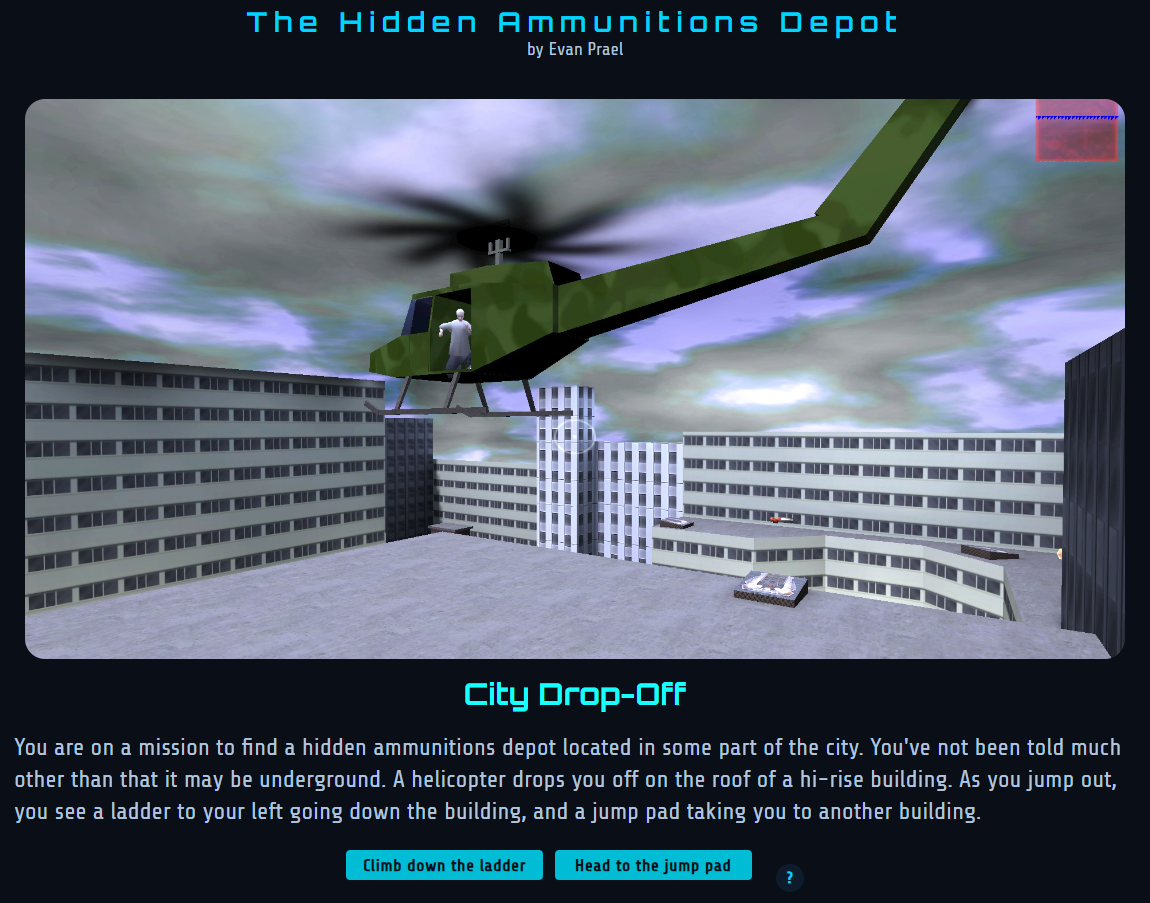

Clicking a story launches the player (play.php). The player renders the current story point — its title, description text, and optional image — along with clickable choice buttons that advance the story. Players navigate the branching path until they reach an ending (a story point with no choices).

Logged-in users also see a "My Stories" filter on the homepage to quickly find their own work, and a "Clone" button that lets them copy any story into their own account as a starting point for a new one.

2.2 Creating and Editing Stories

Registered users can create new stories through the editor (editor.php). The editor has three distinct views, all handled within a single file:

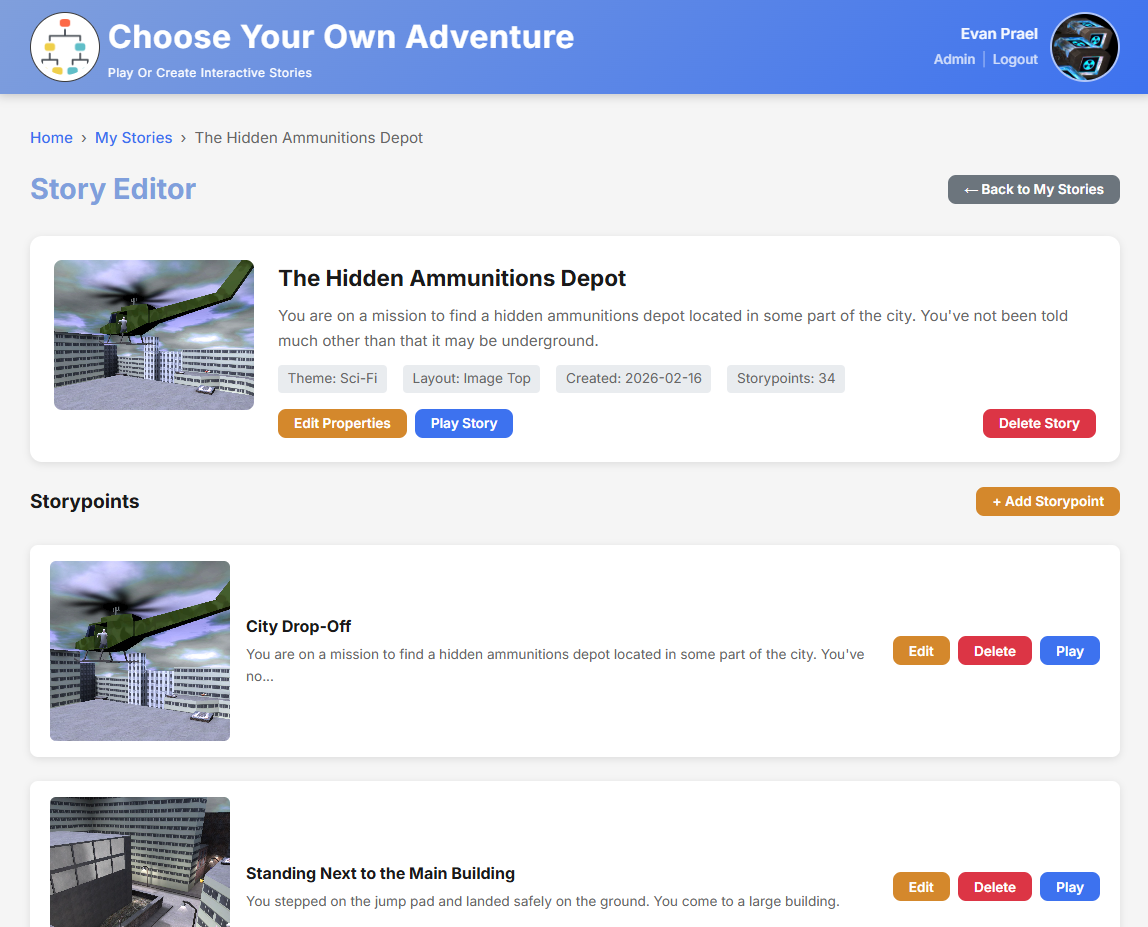

1. Story overview — shows all story points in the story with options to add, edit, or delete them.
2. Story properties form — sets the story's title, description, cover image, theme, and layout.

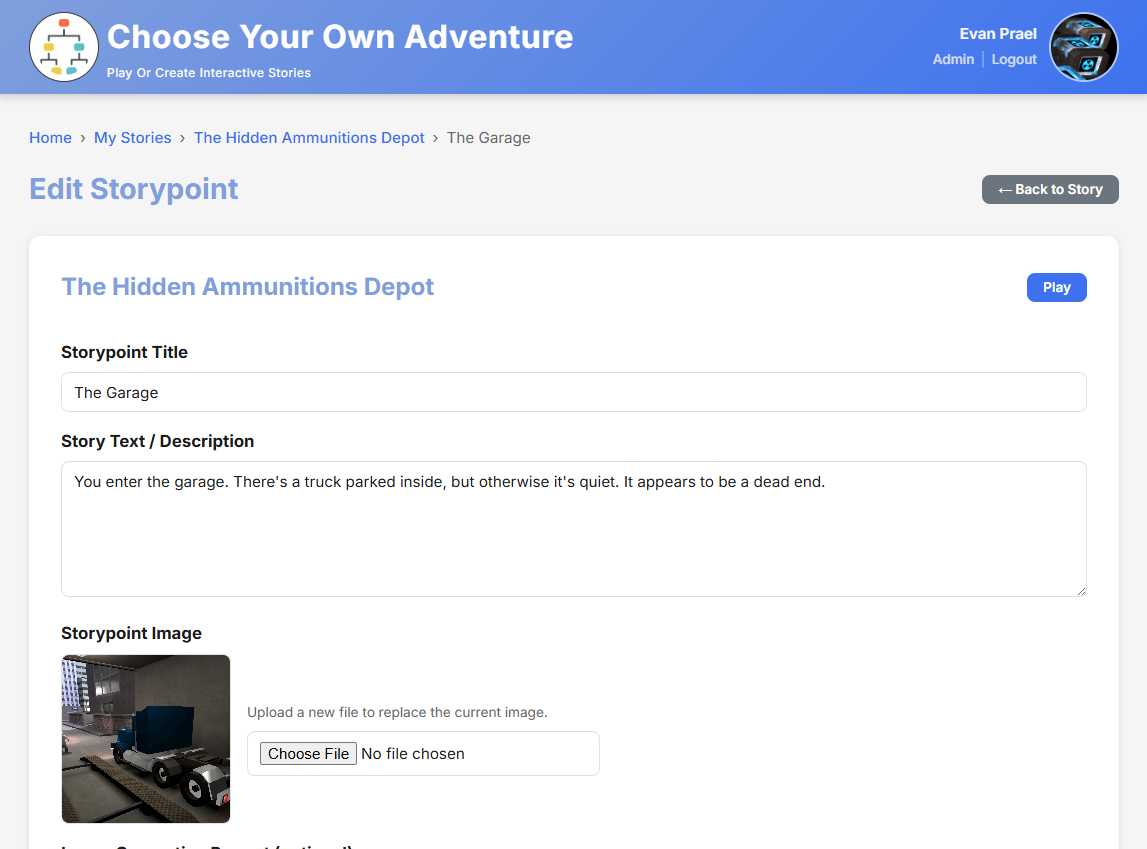

3. Story point form — writes the narrative text, uploads an image, sets a hint tooltip, and defines the branching choices for that story point.

Choices are added dynamically on the story point form. Each choice has a label (the button text the player sees) and a destination (which story point it leads to). Authors can add, reorder, and remove choices before saving.

Cloning a Story

Any logged-in user can clone any story on the homepage. Cloning creates a full, independent copy under the user's account — including all story points and choices — with a new title. All internal choice links are automatically remapped to the new copy's story points, so the cloned story works correctly from the start.

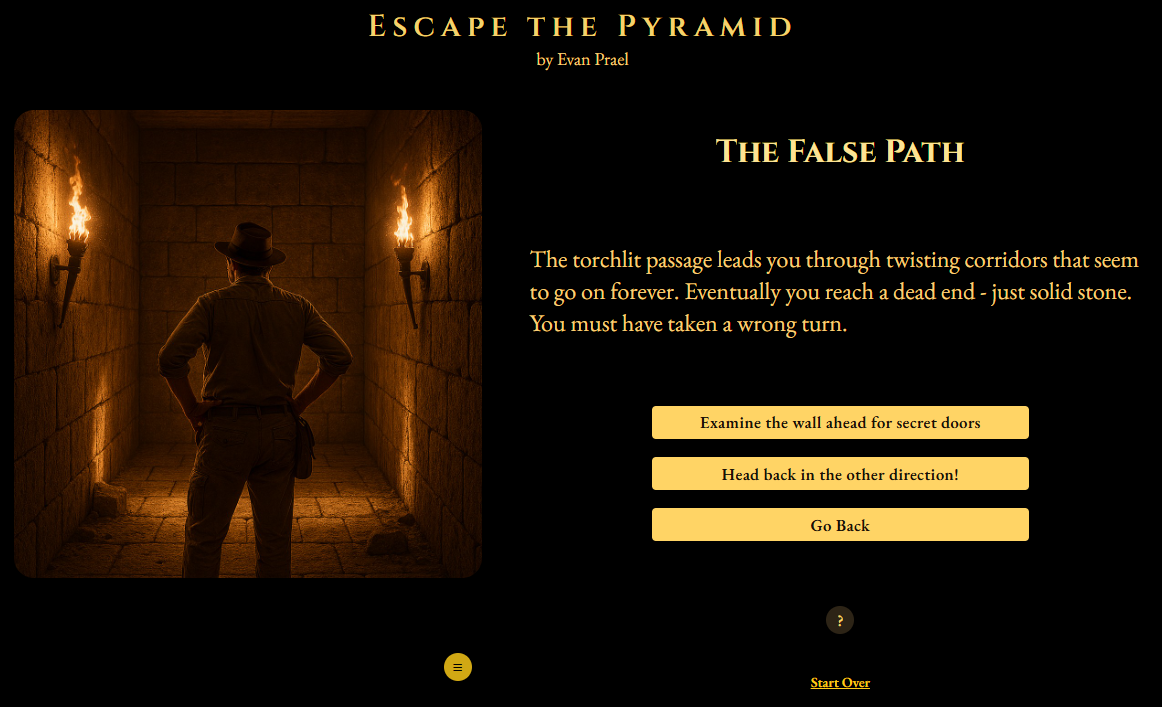

2.3 Themes and Layouts

Each story has a theme that controls the visual style of the play page. There are five themes to choose from:

• Egyptian — warm sandy tones, hieroglyph-inspired feel
• Forest — earthy greens and natural textures
• Sci-Fi — dark background with futuristic typography
• Ocean — cool blues and flowing layout
• Desert — muted oranges and minimalist style

In addition to the theme, authors can choose one of three image layouts for how story point images are positioned on the play page: image_left, image_right, or image_top.

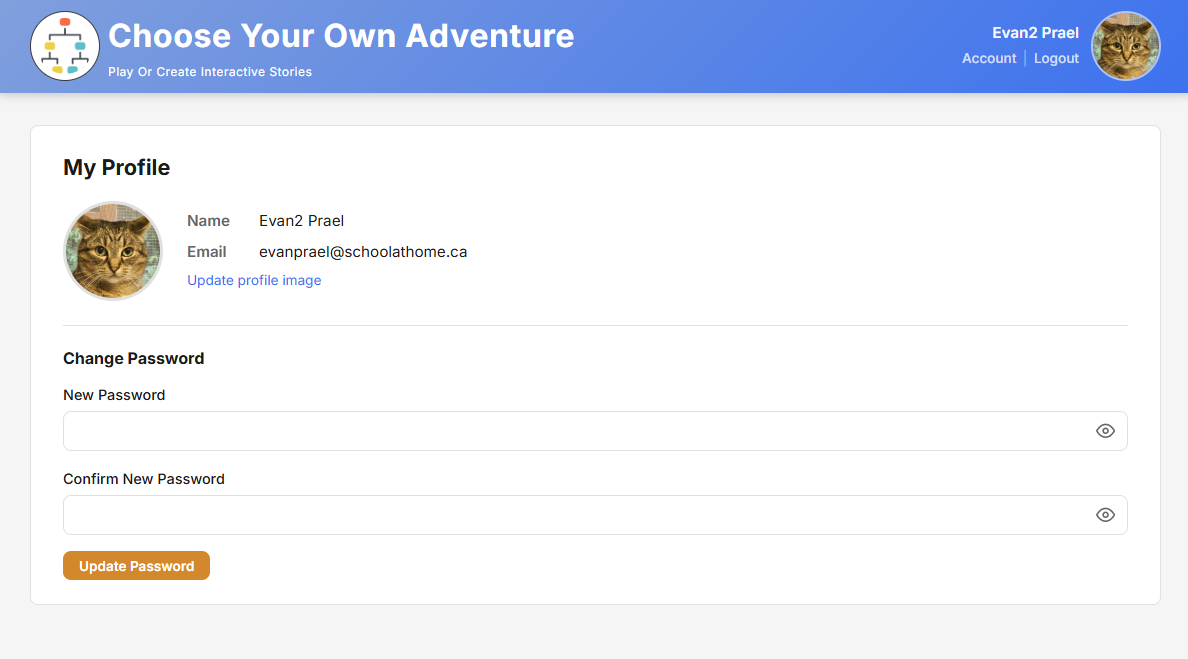

2.4 User Accounts and Profiles

Users register with their name, email address, and a password. After logging in, they can visit their account page (account.php) to update their profile picture. Passwords are never stored in plain text — they are hashed using the industry-standard bcrypt algorithm before being saved.

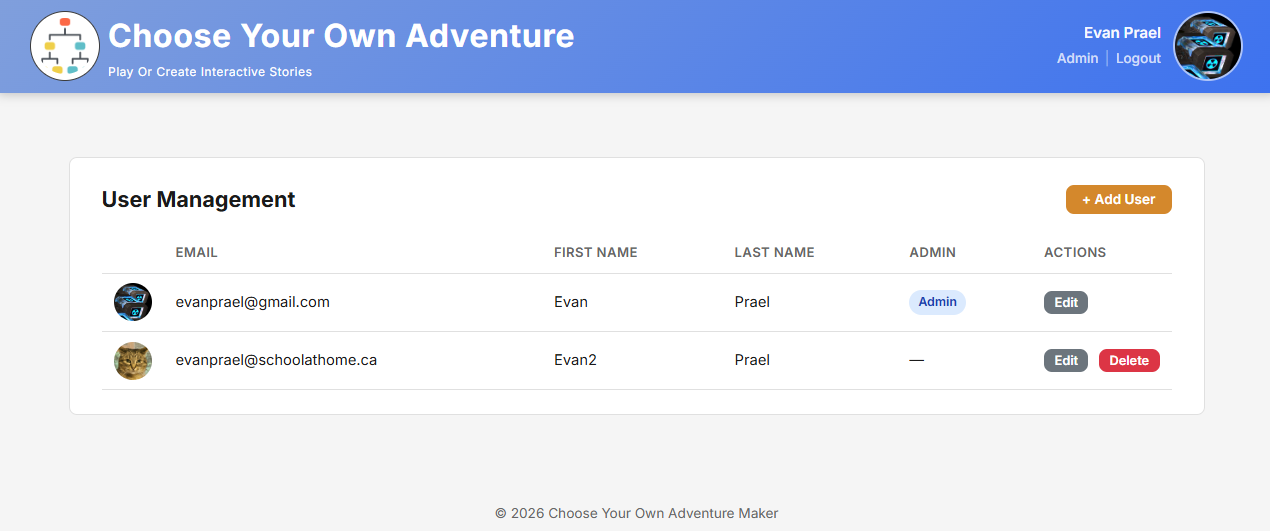

2.5 Admin Panel

Users flagged as administrators see an extra panel on the account page. The admin panel provides the following capabilities:

• View and edit any user account (name, email, admin status)
• Create new user accounts directly
• Delete user accounts (which also removes all their stories)
• Edit or delete any story regardless of ownership
• Reassign story ownership to a different user

The main admin account is defined in config.php using the MAIN_ADMIN constant, which prevents that account from being accidentally demoted or deleted.

2.6 Email Notifications

The app uses PHPMailer with Gmail SMTP to send two types of emails:

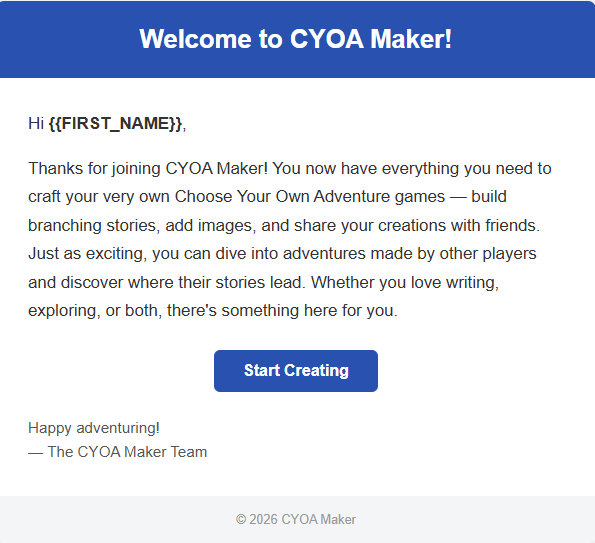

• Welcome email — sent automatically when a new user registers, using an HTML template (template/welcome.html) (sample below).
• Password reset email — when a user requests a reset, a unique time-limited token is generated and emailed as a link. The token expires after one hour for security.

3. Technical Breakdown

3.1 Tech Stack Overview

3.2 Directory Structure

The project is organized as a single web root folder. Here are the key files and folders:

cyoa_maker/
├── config.php            # DB path, SMTP config, MAIN_ADMIN constant
├── db_functions.php      # All database CRUD functions
├── index.php             # Homepage — story gallery
├── editor.php            # Story editor (3 views in one file)
├── play.php              # Story player — loads theme CSS dynamically
├── account.php           # User profile + admin panel
├── header.php            # Shared navigation bar (included on every page)
├── login.php             # Login form
├── register.php          # Registration form
├── forgot_password.php   # Send password reset email
├── reset_password.php    # Accept reset token, set new password
├── logout.php            # Destroy session + redirect
├── mail_helper.php       # PHPMailer wrapper function
│
├── styles/               # CSS files (split by page/component)
│   ├── styles.css        # Base styles, navbar, buttons, layout
│   ├── cards.css         # Story gallery cards
│   ├── forms.css         # Auth and editor forms
│   ├── editor.css        # Editor-specific layout
│   └── account.css       # Account and admin panel styles
│
├── report/               # folder of this report
│   ├── index.php         # this report
│   └── 01.png            # screen shots for report
│
├── themes/               # Per-story play-page themes
│   ├── egyptian_theme.css
│   ├── forest_theme.css
│   ├── scifi_theme.css
│   ├── ocean_theme.css
│   └── desert_theme.css
│
├── images/
│   ├── {storyID}/        # Cover and story point images (one folder per story)
│   └── profiles/         # User profile images
│
├── phpmailer/            # PHPMailer library files
│
└── template/
    └── welcome.html      # Welcome email HTML template

3.3 CSS Architecture

Base Styles

The styles/ folder contains five CSS files, each focused on a different part of the app. styles.css provides the foundation — global typography, the navigation bar, buttons, and the overall page layout. The other files add styles specific to their component: gallery cards, forms, the editor layout, and the account panel. This split keeps each file manageable and avoids one giant stylesheet.

Theme System

The play page (play.php) is styled entirely differently from the rest of the app — each story has its own theme. When a player opens a story, play.php reads the story's saved theme name (e.g., forest) and dynamically builds a <link> tag pointing to themes/forest_theme.css.

All five theme files define the same set of CSS classes (e.g., .container, .choices, .banner), so the play page HTML never changes — only the stylesheet swaps out. Image layout variants (image_left, image_right, image_top) are applied as a class on the <body> tag and handled within each theme file.

3.4 Database Design

Why MySQL?

The project uses MySQL as its database, accessed via PHP's mysqli extension. MySQL is the standard database for shared PHP hosting environments and was taught in class, making it the natural choice. All queries use prepared statements with bound parameters to prevent SQL injection.

phpMyAdmin

phpMyAdmin is a browser-based admin tool for MySQL databases. It is typically pre-installed on shared hosting control panels (cPanel) and in local stacks like XAMPP. It allows developers to inspect tables, run SQL queries, and view or edit records without needing a separate desktop tool.

Tables

All tables use the prefix cyoam1_. There are five tables:

Entity Relationships

The data has a clear hierarchy:

• A User can own many Stories.
• A Story contains many Story Points.
• Each Story Point has many Choices.
• Each Choice points to a destination Story Point (a self-referencing link within the same story).

Users (1) ──── (N) Stories (1) ──── (N) StoryPoints (1) ──── (N) Choices
                                                                        │
                                                     destinationID ─────┘
                                                     (links to another StoryPoint)

The first story point added to a story (lowest storypointID) is automatically treated as the starting point when a player begins the story.

3.5 Key PHP Patterns

Single-File Page Routing

Each page is a self-contained PHP file. Pages that handle form submissions do so at the very top of the file using a switch statement on a hidden action field in the form. After processing, the page immediately redirects with header('Location: ...') — this is called the Post/Redirect/Get pattern and prevents duplicate form submissions on browser refresh.

Flash Messages

After a redirect, the page needs a way to show the user a success or error message. This is done using PHP sessions: before redirecting, the action stores a message in $_SESSION['flash_message'] or $_SESSION['flash_error']. The destination page reads the message, displays it, and immediately removes it from the session so it only appears once.

Database Connection Singleton

All database access goes through a single function, db_connect(), which uses a static local variable to ensure only one mysqli connection is ever created per request. Tables must be created on the server in advance using the provided SQL schema file.

3.6 Security Practices

Security was considered throughout the project. Key measures include:

• Password hashing: All passwords are stored using PHP's password_hash() with the bcrypt algorithm. Plain-text passwords are never written to the database.
• Prepared statements: All database queries use mysqli prepared statements with bound parameters, preventing SQL injection attacks.
• Output escaping: All user-supplied data displayed in the admin UI and editor is passed through htmlspecialchars() to prevent cross-site scripting (XSS). The play page is a deliberate exception — story authors are trusted to include basic HTML formatting in their narrative text.
• Ownership checks: Before allowing edits or deletes, the app verifies that the logged-in user owns the story or story point. Administrators bypass this check.
• File upload validation: Uploaded images are checked against an extension whitelist (jpg, jpeg, png, gif, webp) and saved with randomized filenames to prevent guessable paths.

4. Deployment Guide

4.1 Prerequisites

CYOA Maker requires a standard PHP web server environment:

• PHP 7.4 or higher — tested on PHP 8.x
• MySQL or MariaDB — any standard shared hosting or local XAMPP stack
• mysqli extension — enabled by default in most PHP installations
• File write permissions — the web server needs write access to the images/ directory for uploaded photos

For local development, XAMPP or Laragon work well out of the box — both include MySQL and phpMyAdmin pre-installed.

4.2 Setting Up from a ZIP File

1. Extract the ZIP file into your web server's document root (e.g., htdocs/cyoa_maker/ for XAMPP).
2. Open config.php and update the settings (see Section 4.3 below).
3. Ensure the folder is writable by the web server (chmod 755 on Linux/macOS, or check folder permissions on Windows).
4. Navigate to the app in your browser (e.g., http://localhost/cyoa_maker/).
5. Create a MySQL database and import the provided schema SQL file using phpMyAdmin (or the MySQL command line) to create all five tables.
6. Register the first account and then manually set isAdmin = 1 for that user in phpMyAdmin, or set the email in MAIN_ADMIN in config.php before registering.

4.3 Important Configuration

All key settings live in config.php:

5. Development Reflections

5.1 AI-Assisted Development

This project made heavy use of AI coding tools throughout every phase of development, from the initial project proposal through implementation and all the way to writing this report. Development began with GitHub Copilot, which was used for the early stages of the project. After the monthly Copilot credits ran out, the project switched to Claude Code, which was used for the remainder of development and documentation.

In the proposal phase, AI was used to brainstorm project ideas, refine the concept, and help structure the formal project proposal document.

During implementation, AI served as a coding assistant — generating initial code for features, explaining patterns, helping debug problems, and suggesting improvements. Rather than writing every line manually, the workflow became more about describing what was needed, reviewing the generated code, testing it, and adjusting. This significantly accelerated development while still requiring a solid understanding of the underlying technology to evaluate the output correctly.

For documentation and reporting (including this report), AI helped structure content, fill in technical details, and ensure completeness. The final output still required review and editing — AI-generated writing needs human judgment to be accurate and appropriately scoped.

Overall, AI tools felt like having a knowledgeable collaborator available at all times. The key skill was learning how to communicate clearly with the AI — giving it enough context, pushing back when the output was wrong, and knowing when to accept a suggestion versus rewriting it. A selection of the prompts used throughout this project is included in Appendix A.

5.2 Deploying to a Shared Host

Moving the project from a local XAMPP setup to a real shared hosting server was straightforward. The server runs Apache with PHP and MySQL, which matches the local development environment, so no code changes were needed.

The main step was migrating the data: the local database was exported using phpMyAdmin, and the resulting SQL file was imported into the server's database through the hosting control panel's phpMyAdmin interface. The config.php file was then updated with the server's database credentials and the live URL, and the app was ready.

5.3 Lessons Learned

• Separation of concerns matters. Keeping all database logic in db_functions.php made the codebase much easier to maintain and reason about than if queries had been scattered throughout every page file.
• AI tools accelerate but do not replace understanding. Using AI effectively required knowing enough about PHP, SQL, and web security to recognize when generated code was correct, incomplete, or subtly wrong.
• Match local and server environments. Developing locally on XAMPP with the same PHP and MySQL versions used on the server meant deployment was smooth — what worked locally worked on the server without surprises.
• Flash messages and the Post/Redirect/Get pattern are simple conventions that make multi-page web apps feel polished and prevent frustrating form-resubmission bugs.

6. Future Enhancements

The current version of CYOA Maker covers the core create-and-play experience, but there are several features that would make the platform significantly richer:

User Comments and Feedback

Adding a comment section to the story play page would let players leave feedback for authors. This would require a new cyoam1_comments table linked to stories and users, a comment form on play.php, and a moderation option in the admin panel.

Story Ratings (1–5 Stars)

A star rating system would help players discover the best stories in the gallery. Each registered user could rate a story once, and the average rating would be displayed on the gallery card. This would add a social element that encourages authors to put care into their stories.

AI Integration

Given how central AI was to the development process, integrating AI features directly into the app itself is a natural next step. Possible AI-powered features include:

• Image generation — authors enter a text prompt and an AI-generated image is automatically created for a story point, rather than requiring a manual file upload.
• Story point suggestions — based on the story so far, the AI suggests possible next scenes or choices, helping authors overcome writer's block.
• Full story generation — an author provides a premise (e.g., "a mystery set in medieval Japan") and the AI generates a complete branching story structure as a starting point to edit and expand.

7. Acknowledgements

This project was completed as part of the Grade 12A Web Technologies 10 course, 2025–2026.

• GitHub Copilot — used as an AI coding assistant during the early phases of development.
• Claude Code (Anthropic) — used as an AI coding assistant for the majority of development and for producing this report.
• PHPMailer — open-source library used for sending emails via Gmail SMTP.
• phpMyAdmin — browser-based MySQL admin tool used for database management during development and deployment.
• Google Fonts — Inter typeface used throughout the application and this report.
• Font Awesome — icon library used in the documentation.
• Bing Image Creator — AI-generated images used in the Egyptian adventure story.
• Quake III Arena — screenshots taken in-game were used as scene images in the other two stories. The specific maps captured were lvlworld.com/media/id:351 and lvlworld.com/media/id:2089.
• My Dad! — who helped me a lot with the prompts when the AI needed more info or wasn't getting it.

Appendix A: Sample Prompts

One challenge with AI-assisted development is that it is hard to track entire conversations in the VS Code chat window — sessions get long, context gets lost, and there is no easy export. To work around this, many of the bigger feature requests were pre-written as plain text prompts before being pasted into the chat. A selection of those prompts is shown below.

I want to note that the initial project proposal was also used as a giant prompt and steering document for the AI — it was provided at the start of the project so the AI had full context about the app's goals, features, and requirements before any code was written. The prompts below are individual feature requests that were added on top of that.

Account & Admin Management Page

This prompt was used to build the entire account.php page from scratch.

Cascade Deletes

Ensuring that deleting a user or story also cleans up all related images and database records.

Clone Story Feature

Adding the ability to duplicate one's own stories.

Clone Story — Loading Spinner

The clone operation caused the page to freeze while files were being copied.

Story Card Thumbnail Links

Image Layout Feature

Adding a layout selector to the story properties so authors can control how images appear during playback.

Move CSS Files to a Subfolder

Logo Circle in Header

Author Credit on Play Page

Image Preview — All Upload Areas

Admin — Reassign Story Ownership

Per-Story-Point "Go Back" Toggle

Adding the ability to disable the automatic Go Back button on individual story points.

Play Button Inside Story Point Editor

Project Documentation & Report

The prompt used to start building this report.
